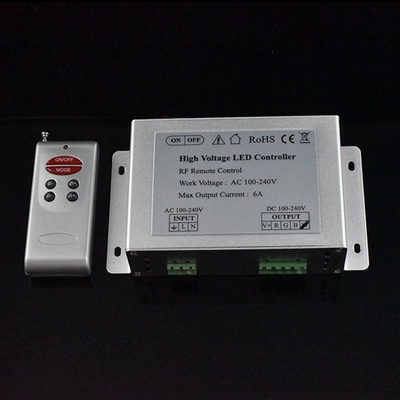

The procuct is a smart LED controller using wireless RF remote control color and brightness variations of the high-pressure lamps.the choice of color,pattern and pace of change can be carried out by using the remote control RGB lamps;while dimming,power-down memory function.the appearance of fine products,easy to use and can meet the application requirements of a variety of high-pressure light bar.

Technical parameters

Controller
Output channels(Optional)	R G B 3Channels
	R G B W 4Channels
Supply voltage	AC 100-240V
Loadable current	6A
Output power	660W(AC110V)~1320W(AC220V)
Control method	RF remote control
Connection mode	Common anode
Changing pattern	11 (7 static color modes，4 dynamic changing pattern)
Dimmering mothod	PWM
Grey steps	8
Protection	The power input polarity protection
Remote
Working voltage		DC 12V
Remote control way		RF
Controlable distance		More than 50 meter
Battery types		Alkaline batteries,23A 12V
Key Number		6 Keys
Whole machine
Working temperature		-20~60 ℃
Ldentification		RoHS
Weight		420g
Packing size		L168×W160×H45mm

Features

1.The newest PWM control technology,delicate light performance,no flicker.

2.More than 50 meters RF remote control distance.

3.Color mode changes and more flexible control.

4.Multi-type menory functions for color,modes,speed,and brightness.

5.Smart appearance,standard in put and output port,easy installation and high cost performance.

Applications

1. Construction decoration:commercial buildings,airports or subways.

2. Indoor decoration:hotels,shopping malls,squares,restaurants,bars,houses.

3. Outdoor decoration:advertising boards,parks,bridges,roads and overpasses,scenic spots.

4. Others:decorating for motor vehicles,samples reveal ark and the places needing RGB lights.

Panel and interface specifications and Product dimensions

Adopt RF remoter to control the led controller,which has 6 buttons,the function of each button as the table below

Modes table

Serial numbet	Mode	Serial numbet	Mode
1	Static red	7	Static white
2	Static green	8	Three base color jumpy changing
3	Static blue	9	Seven base color jumpy changing
4	Static yellow	10	Three base color fade change
5	Static cyan	11	Seven base color fade change
6	Static purple

The wiring and the typical product apply diagram

I nstalling caution
1.Please install the products by professional electrician.

2.This product can not waterproof,please put into water-proof tank if the clients want to use it outdoor.

3.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.

4.Please don't install this controller in lightening,intense magnetic and high voltage fields.

5.Check if the voltage and power adapter suit the controller and LED lights.

6.Please make sure the wires can sufficiently load the LED lights for avoiding accident.

7.Please make sure all the wires are connected correctly before switching on the power.
