Can COB LED Strips Be Dimmed? A Comprehensive Guide

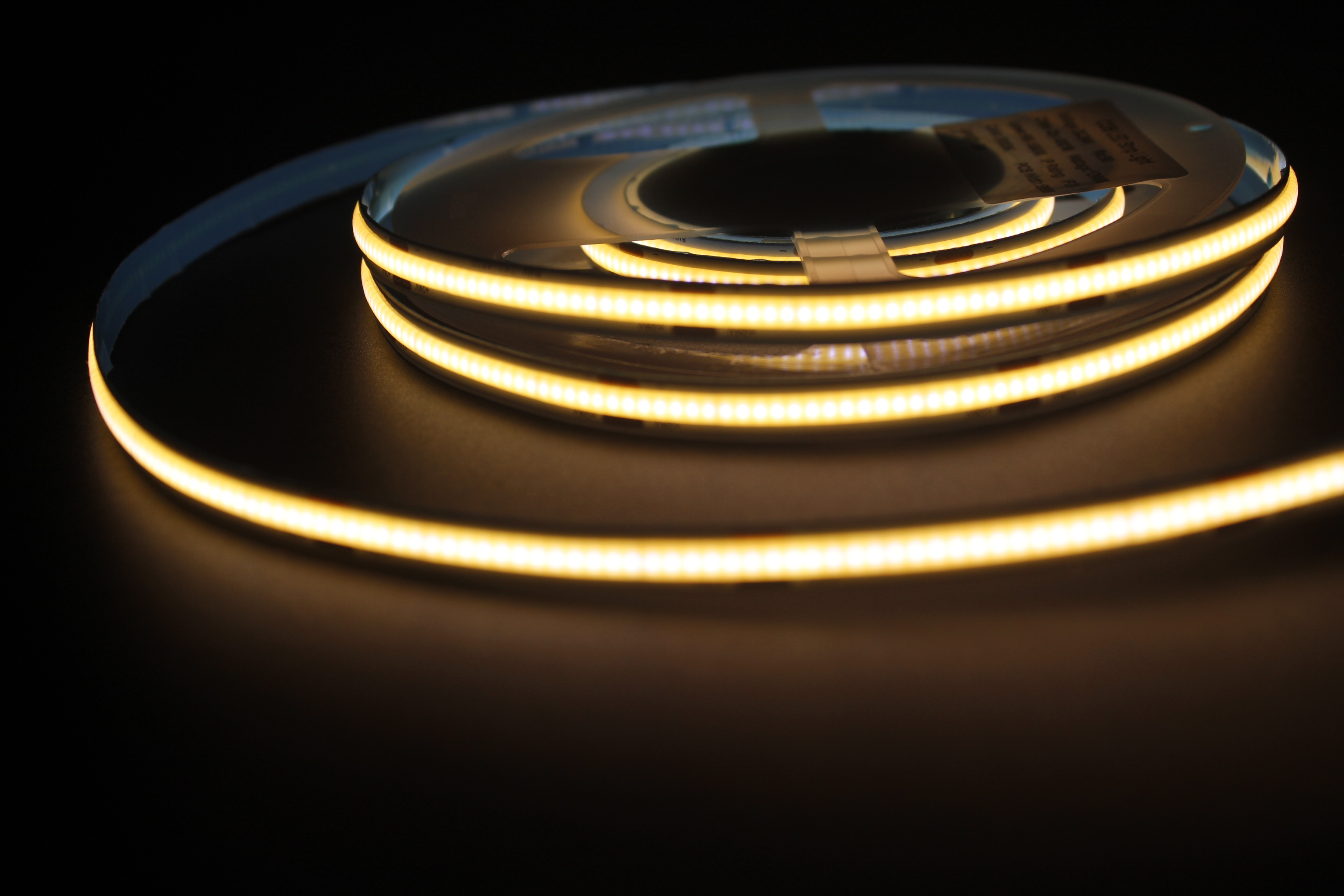

COB (Chip on Board) LED strips have gained popularity due to their uniform lighting, high efficiency, and improved heat dissipation. A common question among users is whether COB LED strips can be dimmed and how effective the dimming process is. This article explores the dimming capabilities of COB LED strips, the methods used, and the overall performance of dimmable COB LEDs.
Yes, COB LED strips can be dimmed, provided they are designed to be compatible with dimming systems. Unlike traditional LED strips that use discrete LEDs, COB LED strips feature densely packed LED chips that create a seamless, even light output. Their dimming capabilities depend on the power supply and the type of dimming method used.
There are several ways to dim COB LED strips, each with its advantages and considerations:
PWM (Pulse Width Modulation) Dimming:
PWM dimming works by rapidly switching the LED on and off at a high frequency. This method is commonly used in LED dimmers and controllers.
It provides smooth dimming with minimal color shift.
Compatible with most LED drivers and controllers.
Triac (Phase-Cut) Dimming:
Often used in AC-powered LED strips with compatible dimmable drivers.
Works with traditional wall dimmers but may require a compatible LED driver to prevent flickering.
Less efficient compared to PWM dimming.
0-10V Dimming:
Uses a separate control signal (0-10V) to adjust brightness levels.
Common in commercial and industrial applications.
Offers precise and smooth dimming but requires a compatible power supply and control system.
DALI (Digital Addressable Lighting Interface) Dimming:
A more advanced system used in smart lighting applications.
Allows for programmable dimming and remote control.
Best for large-scale lighting projects.
The dimming effect of COB LED strips depends on the quality of the LED chips, the power supply, and the dimming method used. Here are some key factors influencing dimming performance:
Smoothness: High-quality COB LED strips dim smoothly without noticeable flickering or sudden jumps in brightness.
Color Consistency: Some LED strips experience color shifts at lower brightness levels, but high-quality COB LEDs maintain consistent color temperature.
Flicker-Free Operation: Using a high-frequency PWM dimmer or a stable power supply can help eliminate flickering.
Dimming Range: COB LED strips generally support a wide dimming range, from 100% brightness down to around 10% or even lower, depending on the controller.
COB LED strips can be effectively dimmed using the right methods and equipment. To achieve the best dimming performance, it's essential to choose high-quality COB LED strips, a compatible power supply, and an appropriate dimming method. Whether for residential, commercial, or decorative applications, dimmable COB LED strips offer versatility and control over lighting intensity, enhancing ambiance and energy efficiency.
